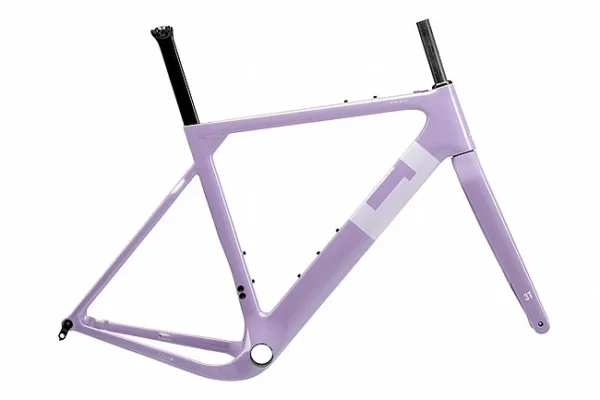

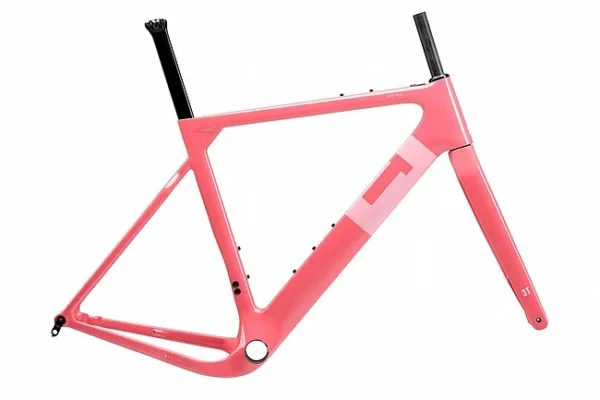

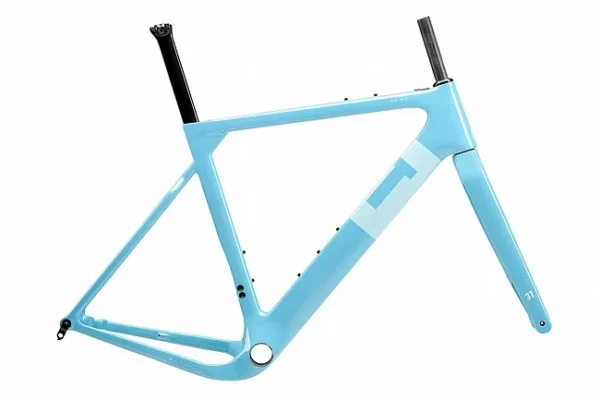

3T Primo WPNT Gravel Frameset

The First, Still The Best

The 3T Primo WPNT is their original all-round bike frame with a refreshed design and is now hand-painted in Italy. Primo (formerly Exploro) has become an icon among gravel frames, and like all classics, it ages gracefully.

3T is also now proud to say “WE PAINT.” Starting with the iconic Primo, the WPNT lineup brings 3T’s hand-painted in-house paint program to their fantastic frames.

Features:

• Squaero Fork Legs: Perfect to guide the airflow around the front wheel and boost fork stiffness.
• Squaero Headtube, Downtube and Seattube: Frame shapes complete the aero fork blades.
• Drop Chainstay on Drive Side: Improves tire & crank clearance.
• Tire Clearance: Fits up to 700 x 46mm tires and even 27.5″x51mm (2.0″), while keeping 4mm between any frame part and tire.
• 1x and 2x Compatibility: 1x transmission for simplicity and efficiency – 2x groupset compatible.
• Seatpost Expander: Aero-optimized and user-friendly just like on the Strada.
• Thread-together BB: All the Primo complete bikes come with thread-together BBs without any alloy rings in the carbon (avoiding added weight, complexity and debonding risk).
• Ritchey Rail Clamp: Available for round and oval rails.
• 2 Bottle Position Downtube: When using one bottle cage, go for the lowest downtube position for the best aero advantage.

Build:

• Frame: Primo WPNT – handpainted in Italy
• Frame Material: Unidirectional pre-preg carbon, High-modulus/high-strength performance blend layup
• Fork: 3T Fango
• Headset: Sealed cartridge 1.125″ – 1.5″
• Thru-Axle: 100×12 front – 142×12 rear (specific for hang loose hanger)
• Bottle Cage: 3T nylon front load water bottle cage
• Seatpost: 3T Primo setpost for Ritchey clamp
• *Specifications are subject to change without notice
