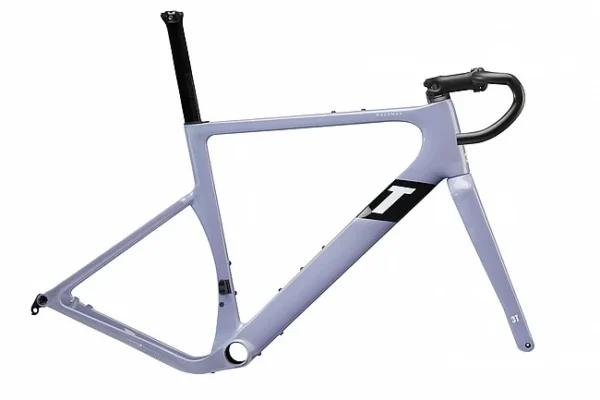

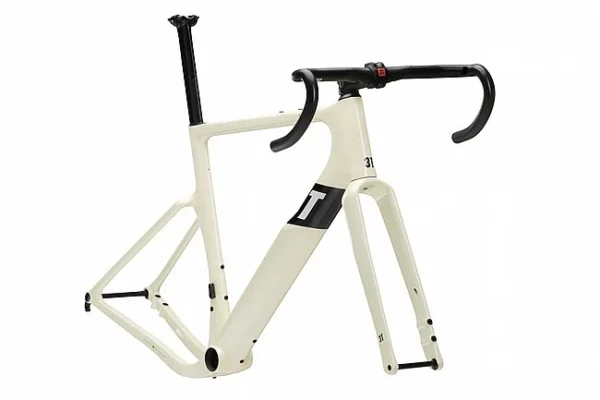

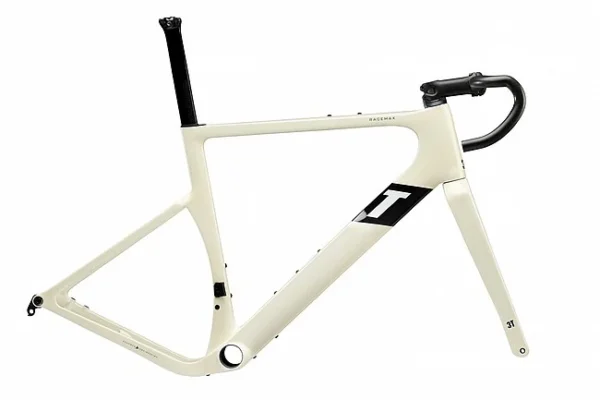

3T Racemax Integrale WPNT Gravel Frameset

The Perfect Gravel Race Machine

The 3T Racemax Integrale WPNT is a full-aero gravel frameset with fully integrated cable routing for speed on-road and off-road, hand-painted in Italy. This set includes the Apto Integrale Stem and handlebars.

Features:

• Perfect Aero Cutout: Close-fitting cutout to shield the rear wheel and achieve the most speed.
• Mind the Gap: No oversized gaps between front tire & downtube for better airflow transition and less turbulence.
• Huge Clearance: The original Exploro set today’s standard for up to 54mm tire clearance. The RaceMax has up to 61mm with 650b”!
• 75mm Downtube Base: Lower downtube aero profile is 75mm wide to fully shield water bottle.
• 50mm Downtube Neck: Upper downtube necks down to 50mm to pick up the airflow coming off the front tire.
• Size-Specific Downtube: Reduced depth on smaller sizes to keep frame compliant and keep space for bottles.
• Narrow Headtube: Headtube is sized like a road bike for a narrow 1 1/8″- 1 ¼” steerer for optimal aerodynamics.
• Big Steerer: Inside that narrow headtube is a big 1 1/2″ steerer for best strength and stiffness.
• Minimalist Crown: Fork crown shapes haven’t changed much since brakes were attached there. Now that we have disc brakes, we don’t need that bulk of material and can reshape the crown for better strength, stiffness and weight. Plus better aerodynamics.
• Pure-Road Fork Length: With the shorter crown, the fork can be 25mm (1 inch) shorter than other gravel bikes. Exactly the same as a road fork. This offers better stiffness, lower weight, an easier steering geometry, and better aerodynamics.
• Double-Drop Chainstays: Dropping the drive-side chainstay improves tire & crank clearance. Dropping the other side as well creates a much more efficient structure behind the BB for higher stiffness & strength as well as lower weight.
• Direct-Mount Rear Brake: Standard frames require an adaptor to use a 160mm brake rotor. It’s integrated into the frame, meaning you don’t need any extra pieces to attach the brake.
• Direct-Mount Front Brake: Standard forks require a flip-flop adaptor to set the correct brake rotor size. The direct-mount pre-sets the caliper for 160mm rotors without any extra pieces.
• Integrated Fender Mounts: Invisible until you need them. Perfect for 3T custom fenders.
• Self-Aligning Wedge Clamp: Self-adjusting bolt angle for higher clamping forces with lower torque.
• Ritchey Rail Clamp: The new standard for gravel bikes, available for round and oval rails.

Specs:

• Frame Material: Unidirectional pre-preg carbon, High-modulus/high-strength performance blend layup
• Fork: 3T Fango RaceMax Integrale w/ compact crown
• Headset: 3T MinMax Integrale IS42/34 | IS47/38(36deg)
• Thru-Axle: 100×12 front – 142×12 rear
• Handlebar: 3T Superergo Integrale LTD (48: 38cm – 51: 40cm – 54&56: 42cm – 58&61: 44cm)
• Bar Tape: 3T Prendo Speed
• Stem: 3T Apto Integrale Stealth (48: 70mm – 51: 80mm – 54:90mm – 56: 100mm – 58: 110mm – 61: 120mm)
• Bottle Cage: 3T nylon front load water bottle cage
• Seatpost: 3T RaceMax seatpost for Ritchey clamp
