Atlas Apex 8 Certified Four Post Lift

The Atlas Apex 8 is an ALI CERTIFIED four-post hobbyist lift designed and built for use by Mr. Homeowner or restoration shop

Single Point Lock Release – This Atlas Storage Lift has a manual single point release that allows the operator to release all the safety locks at one time. The spring loaded lock handle and power unit dump valve must be activated at the same time. (two hand operation) If the lock handle is released and the dump valve handle is still being pressed, the lift will continue to descend and all locks will automatically re-engage at the next lower lock point.

Double Lock Safety System – This Atlas Lift locking system offers a unique two position locking mechanism found only in commercial grade cable style four post lifts. The Double Lock Safety System is found exclusively on the Atlas Garage 408SL, Atlas Garage 409HP, Atlas Garage Pro 8000, the Atlas Garage Pro 9000, and the Atlas ST-7000. The Double Lock Safety System is designed to ensure that if a lifting cable becomes slack (for any reason), the secondary locking mechanism automatically engages. This Double Lock Safety System is found only on other four post above ground lifts costing hundreds of dollars more.

Lock Ladder Column Design – This Atlas Lift has a commercial grade lock ladder. We believe that the lock ladder system is the safest locking system for any four post lift. The lock ladder system also provides an infinite number of runway locking positions. The “old-style” welded locks could not be adjusted. The lock ladder is adjustable inside the column so that our customers can “micro-manage” the correct runway height to accommodate any vehicle. The “lock ladder” column system is the same column system found on professional grade lifts found in car dealerships and automotive service centers.

Includes Approach Ramps – The included steel approach ramps can be easily removed by raising the lift to waist height, then lifting the ramps out. Each steel approach ramp weighs 46 lbs.

Includes (2) Rubber Wheel Chocks, and (4) Steel Wheel Stops.

Features

• ALI Certified
• 8,000 lbs. Capacity
• Atlas Powder Coat Finish
• Single Point Lock Release
• Lock Ladder Design
• Double Lock Safety System
• Steel Approach Ramps Included
• Four Wheel Stops Included
• Two Rubber Wheel Chocks Included
• Perfect For Storing Or Working On Vehicles

Specifications

• Capacity: 8,000 lbs.
• Lifting Height To Top of Runway: 72″ (6′)

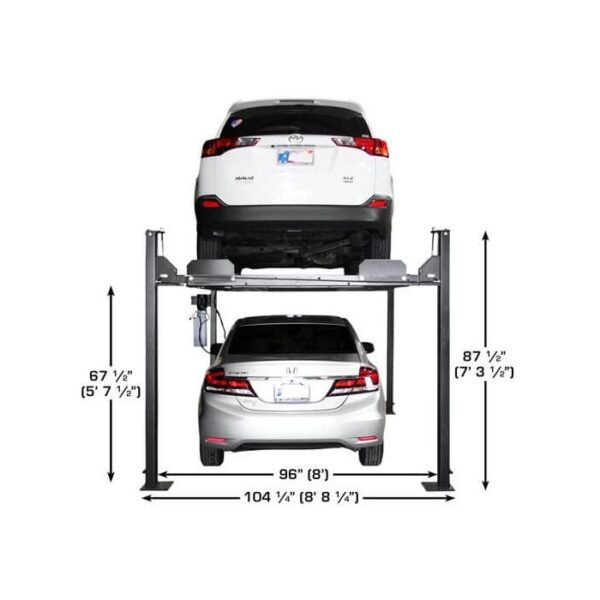

• Clearance Under Runways: 67-1/2″ (5′ 7-1/2″)

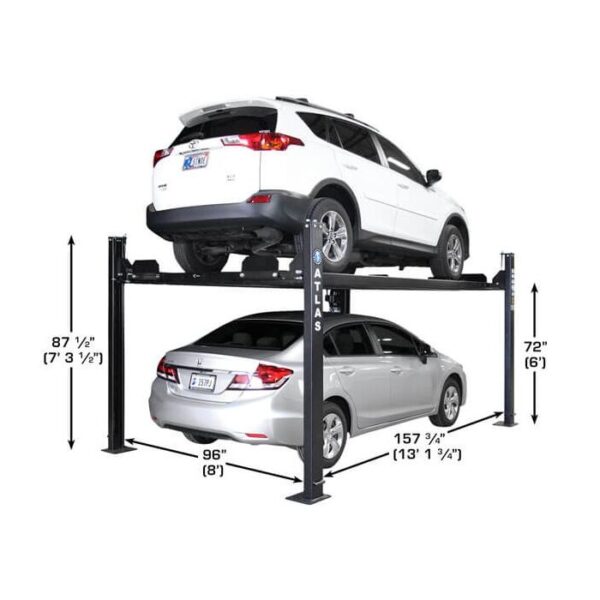

• Height of Columns (Including Nuts): 87-1/2″ (7′ 3-1/2″)
• Overall Width (Without Motor or Casters): 104-1/4″ (8′ 8-1/4″)

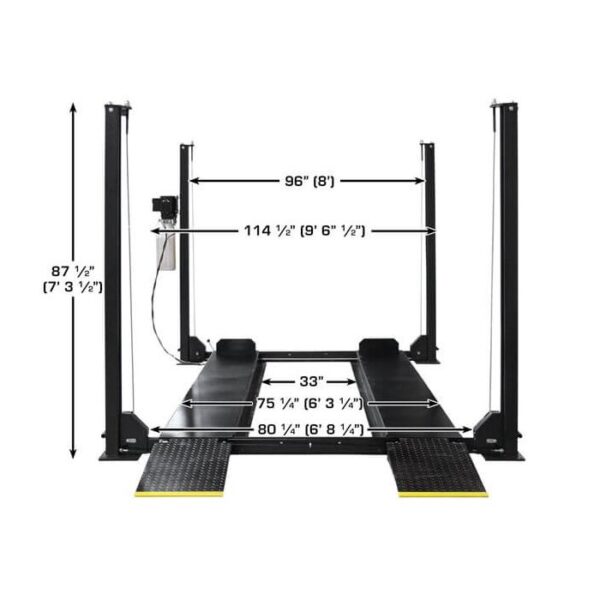

• Overall Width (With Motor): 114-1/2″ (9′ 6-1/2″)
• Overall Length without Approach Ramps (Including Lock Release Bar): 186-1/2″ (15′ 6-1/2″)
• Overall Length with Approach Ramps (Including Lock Release Bar): 219-1/2″ (18′ 3-1/2″)
• Approach Ramps: 37-1/2″ (3′ 1-1/2″)

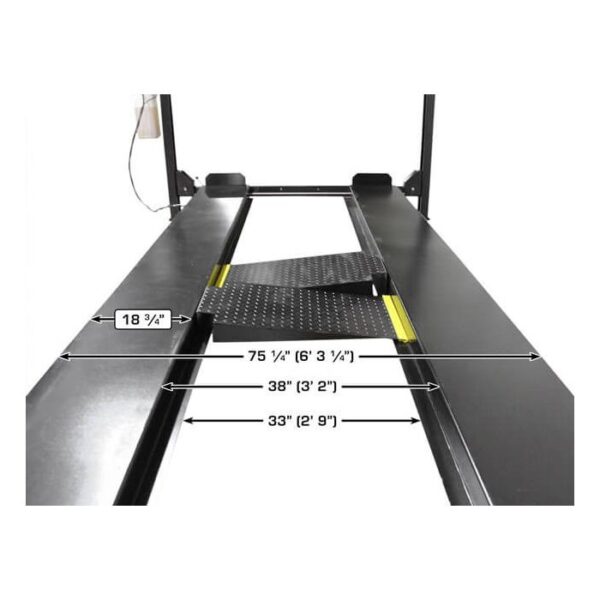

• Runway Width: 18-3/4″
• Runway Rail Width: 2-1/2″
• Runway Length: 165-1/2″ (13′ 9-1/2″)
• Runway Thickness: 4-1/2″
• Width Between Runways: 38″ (3′ 2″)
• Width Between Runway Rails: 33″ (2′ 9″)
• Outside Runway to Outside Runway: 75-1/4″ (6′ 3-1/4″)
• Size of Column: 6″ x 3-3/8″
• Clearance Between Columns: 96″ (8′)

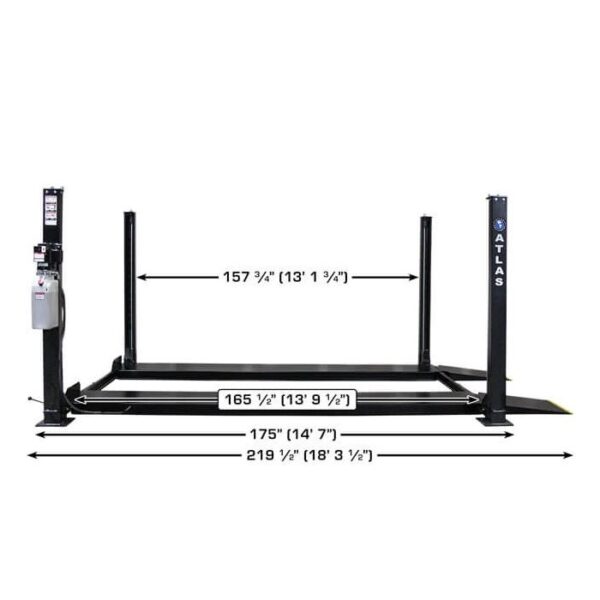

• Length Between Columns: 157-3/4″ (13′ 1-3/4″)
• Base of Column: 11-1/2″ x 9-3/4″
• Maximum Wheel Base: 153-1/2″ (12′ 9-1/2″)
• Drive Thru (Outside of tire to outside of tire): 80-1/4″ (6′ 8-1/4″)
• Cable Diameter: 7/16″ (.4375″)
• Gauge of Steel: 6 Gauge (.1875″ / 3/16″ / 4.75mm)

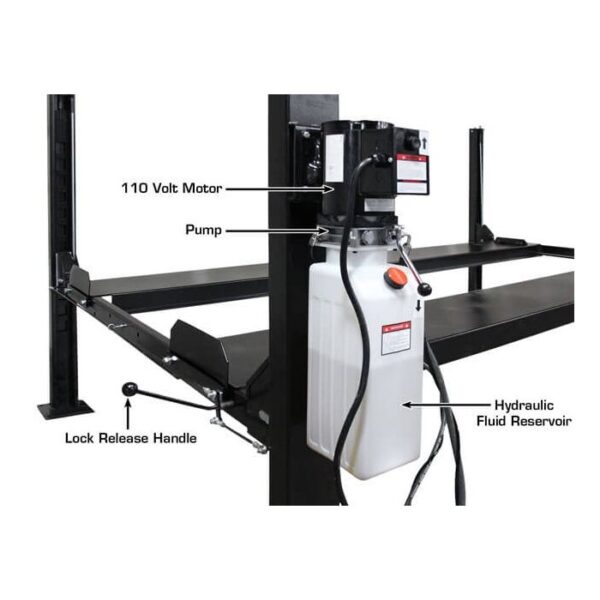

• Motor: 110 Volt, Single (1) Phase
• Electrical Requirement: 30 Amp Breaker is Required
• Oil Requirement: 2.6 Gallons AW32/AW46
• Shipping Dimensions: 30-1/2″ W x 23″ H x 171″ L (2′ 6-1/2″ W x 1′ 11″ H x 14′ 3″ L)
• Shipping Weight: 2,000 lbs.
• Warranty: 5 Years Structure, 2 Years Hydraulic, 1 Year Power Units, No Labor
