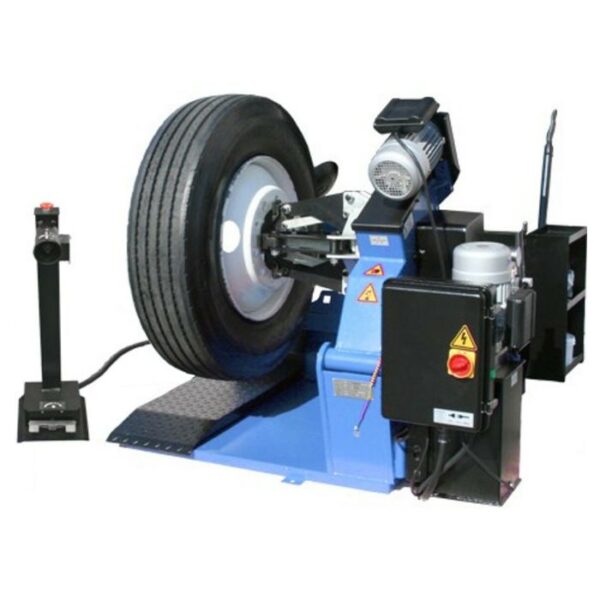

The Atlas TTC301 Heavy-Duty Truck Tire Changer is designed and engineered to handle rim sizes from 13″ to 27″ and tire diameters in excess of 63″. The Atlas TTC301 truck tire changer can easily accommodate tires with a maximum width of 30.5″. This tire changer has been sold all over the world for the last several years and is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the premier wheel service equipment manufacturer in Asia.
This Atlas TTC301 truck tire changer is designed for high volume truck tire shops that demand dependability and durability in their equipment.
The Atlas TTC301 truck tire changer is the perfect choice for the large truck tire center that does high volume truck tire work on standard over the road wheel assemblies.
Features Information: Motor 220V 1 Phase

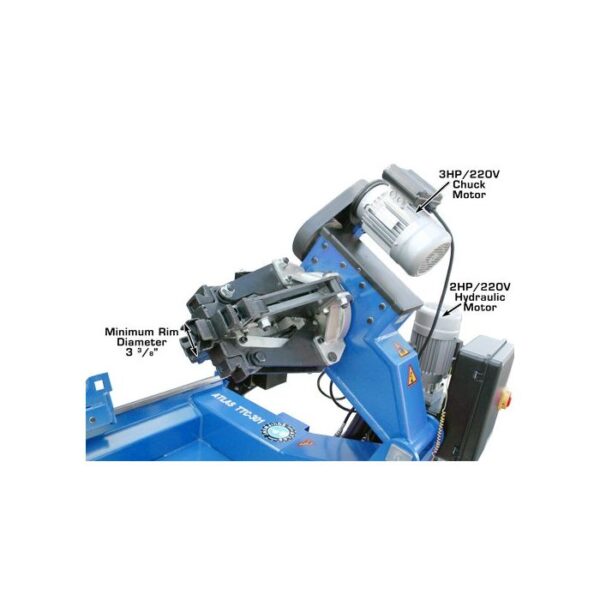

The powerful chuck 220 volt (+/- 5%, so 209-231 volts) single (1) phase motor and sophisticated hydraulic system delivers extraordinary torque and power to the Atlas TTC 303 truck tire changer. The 220 volt single (1) phase motor is the perfect choice for those tire stores where three (3) phase electricity is not available.
CE Tested and Approved
Electrical voltage requirements are different in the USA compared to other countries. There may also be certain accessory items that need to be included for Europe, but are not needed in the USA.
Electric / Hydraulic Self-Centering Four Jaw Chuck

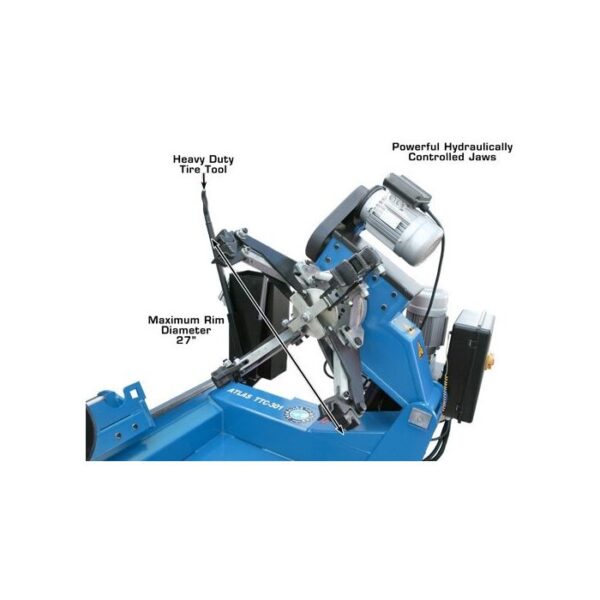

Atlas TTC301 truck tire changer features an electric/hydraulic operated self-centering four jaw chuck that can clamp from either the inside of the wheel or from the center bore of the wheel.
Portable Control Unit
The portable control unit console allows the operator to safely monitor all tire changing operations from the correct angle.
Bead Breaker and Mount/Demount Head
The bead breaker disc and the mount/demount head are combined into one quick change assembly to make the mounting and demounting procedures very easy.
Standard Accessories Included
The Atlas Truck Tire Changer includes a tire tool, a heavy duty tire tool, a set of steel rim clamp pliers, a special set of pliers for use with alloy rims, and a full set of alloy rim protectors and plastic protective covers to prevent damage to decorative chrome rims.

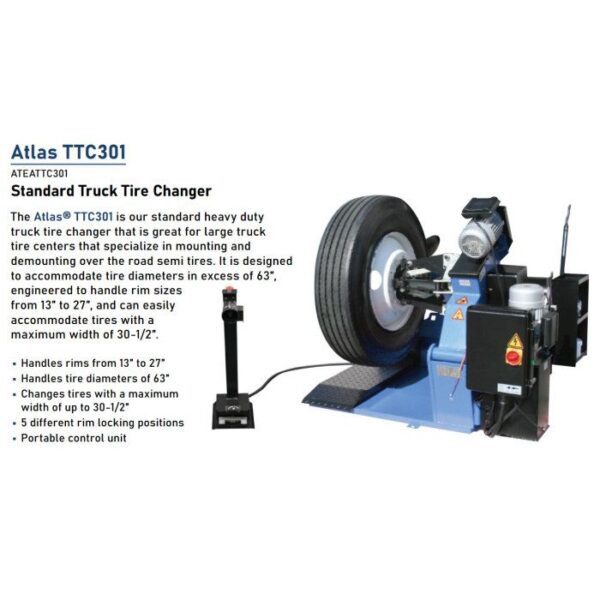

Features and Specs
Features
Standard Truck Tire Changer
Handles Rims From 13″ To 27″ And Tire Diameters In Excess Of 63″
Accommodates Tires With A Max Width Of Up To 30 1/2″
Bead Breaker
Mount/Demount Head
Electric/Hydraulic Self-Centering Four Jaw Chuck
5 Different Rim Locking Positions
Wired Mobile Control Unit
Standard Accessories
Tire Tool
Heavy-Duty Tire Tool
Steel Rim Clamp
Alloy Rim Clamp
(4) Aloy Rim Adapters With Plastic Inserts

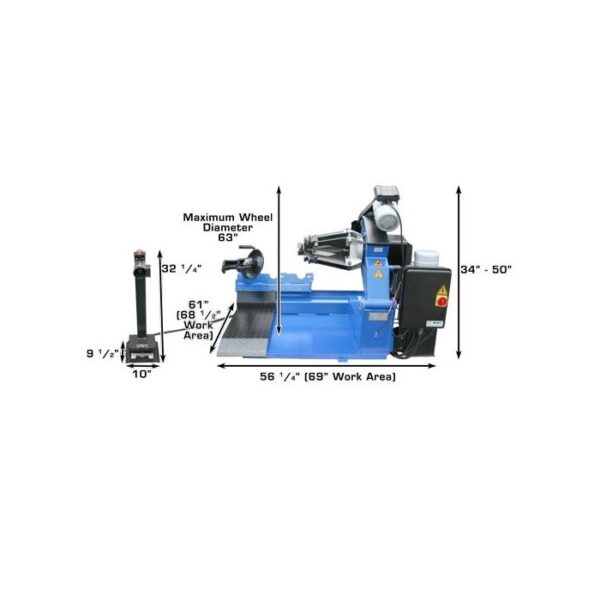

Specifications
Rim Clamping Range: 13″ – 27″
Minimum Clamping Size With Alloy Adapters: 6 3/8″
Max Wheel Weight: 3,300 lbs.
Max Tire Diameter: 63″ (5′ 3″)
Max Tire Width: 30 1/2″ (2′ 6 1/2″)
Clamping Power: 6,614 lbs.
Operating Pressure: 0-1885 PSI
Acoustic Pressure: <70dBA
Bead Breaker Force: 4112 lbs.
Tool Arm Positioning: Manual
Tool Head Positioning: Manual
Construction: Single Piece Frame w/ Solid Floor Plate
Atlas (1) Year Limited Parts Only Warranty
This warranty covers any defects in manufacturing on your spray wash cabinet.
This warranty lasts (1) year from the date of purchase. Coverage terminates if you sell or otherwise transfer the spray wash cabinet during the period of the warranty.
Rust, or any problem that is caused by abuse, misuse, or an act of God is not covered in this warranty. The manufacturer should not be liable in either tort or contract for any loss or damage, direct, indirect, special, consequential, or incidental, arising out of the use or inability to use this product. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.
