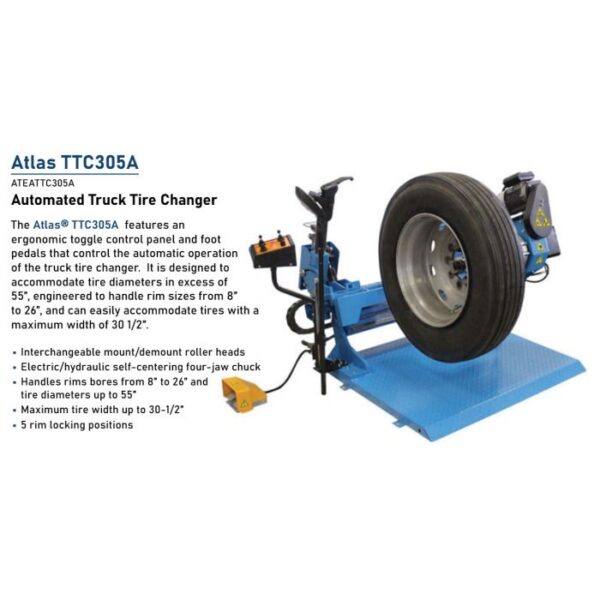

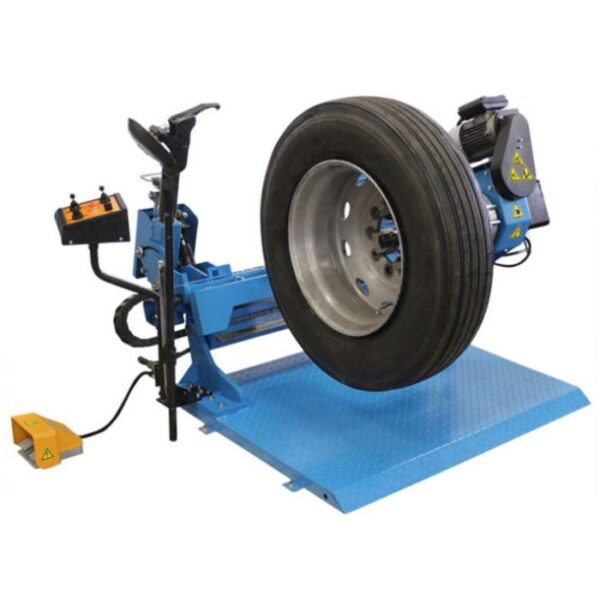

The Heavy Duty Atlas TTC305A automatic truck tire changer is designed and engineered to handle rim bore sizes from 8 inches to 26 inches and tire diameters in excess of 55 inches. The fully automatic Atlas TTC305A truck tire changer can easily accommodate tires with a maximum width of 30 1/2 inches. This automatic truck tire changer is the result of a joint venture between a very prestigious Italian wheel service manufacturer and the most well respected wheel service equipment manufacturer in Asia.
The Atlas TTC305A truck tire changer features a single speed hydraulic chuck with five (5) locking rim positions. The ergonomic toggle control panel and foot pedals control the automatic operation of the truck tire changer. The main panel allows the technician to control the automatic movement of the chuck arm, the automatic positioning of the bead tool (raise and lower) and the automatic movement of the carriage to align the bead tool with the tire. The foot pedals control the rotational direction of the chuck. The Atlas TTC305A comes with a standard mount/demount head and a super fast roller head that can be swapped out in very little time. There is an emergency safety switch on the control panel that can stop all functions immediately.
This is the perfect automatic tire changer for high production shops that change semi-tires, 19.5 tires and forklift tires. Quit using tire irons and a strong back! Let the Atlas TTC305A take the hard work out of changing those tires that are too big for your passenger tire wheel clamp tire changer.
Features and Specs
Features
Fully Automatic Truck Tire Changer

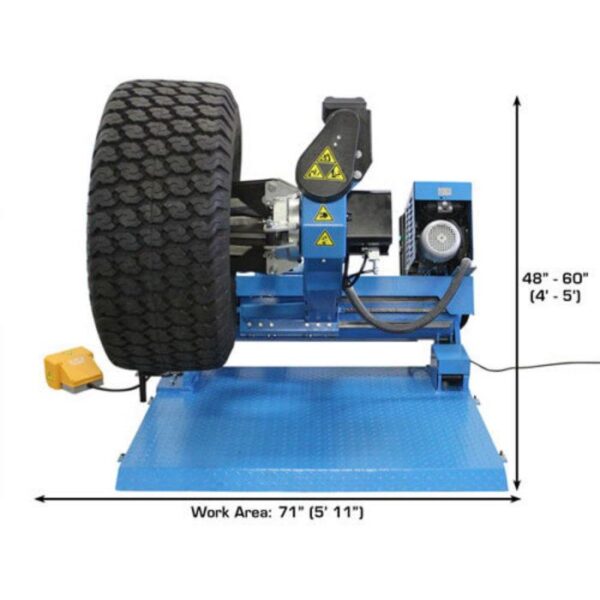

Handles Rims From 8″ To 26″ And Tire Diameters In Excess Of 55″
Accommodates Tires With A Max Width Of Up To 30 1/2″
Automatic Movement And Positioning Of Bead Tool, Carriage, & Chuck Arm
Bead Breaker
Interchangeable Mount/Demount And Roller Heads

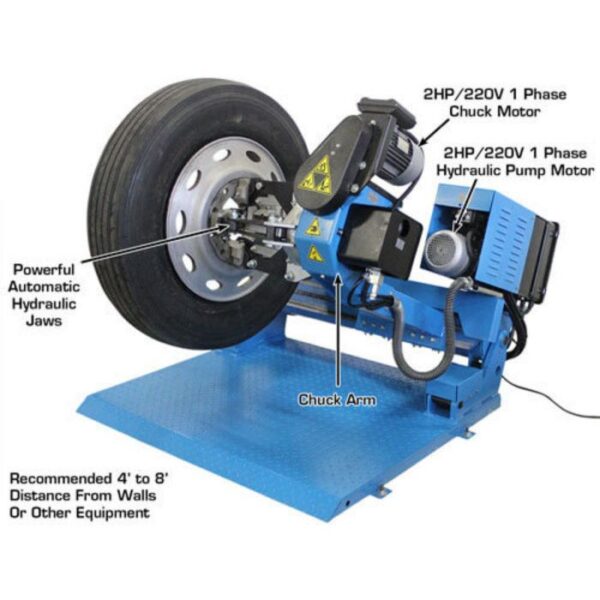

Electric/Hydraulic Self-Centering Four Jaw Chuck
5 Different Rim Locking Positions
Mounted Control Unit With Additional Foot Pedal Controls
Standard Accessories
Tire Tool
Heavy-Duty Tire Tool
Steel Rim Clamp
Alloy Rim Clamp
(4) Alloy Rim Adapters With Plastic Inserts
(4) Clamping Extensions
Specifications
Rim Clamping Range: 13″ – 26″
Minimum Clamping Size With Alloy Adapters: 8″
Max Wheel Weight: 838 lbs.
Max Tire Diameter: 55″
Max Tire Width: 30 1/2″ (2′ 6 1/2″)
Clamping Power: 6,600 lbs.
Operating Pressure: 0 – 1885 PSI
Acoustic Pressure: < 70dBA
Bead Breaker Force: 3990 lbs.
Tool Arm Positioning: Automatic
Tool Head Positioning: Automatic
Construction: Single Piece Frame w/ Solid Floor Plate
Atlas (1) Year Limited Parts Only Warranty
This warranty covers any defects in manufacturing on your spray wash cabinet.
This warranty lasts (1) year from the date of purchase. Coverage terminates if you sell or otherwise transfer the spray wash cabinet during the period of the warranty.
Rust, or any problem that is caused by abuse, misuse, or an act of God is not covered in this warranty. The manufacturer should not be liable in either tort or contract for any loss or damage, direct, indirect, special, consequential, or incidental, arising out of the use or inability to use this product. Some states or provinces do not allow the exclusion or limitation of incidental or consequential damages, so the above limitations may not apply to you.
