Aventon Abound SR Ebike

Introducing the all-new Abound SR—the enhanced cargo ebike built to carry anything and tackle every challenge. Whether you’re cruising through the streets or bike pooling with a friend, the Abound SR is always ready for any action. Its compact frame keeps you agile, while advanced security^† and GPS^† features give you total peace of mind.

Outfitted with an adjustable quill stem, suspension seat, and cutting-edge theft deterrent features^†, every ride is smooth, secure, and stress-free. Whether it’s a quick trip or a big haul, the Abound SR is your go-to for dominating the road.

• Model Abound SR Ebike
• Weight 80 lbs
• Total Weight Limit 440 lbs
• Rider Height 4’11” – 6’3″Class
• Class 2 EbikeWater ResistanceIPX4
• Ideal Use Cargo & Utility
• Pedal Assist 3 Levels
• Safety Certified UL Certified – Abound SR UL 2849, Battery UL 2271
• Range Up to 60 miles
• Folding No
• Fork Threaded Steerer Tube for Quill Stem 15×110 spacing, 50mm travel, adjustable lockout, black stanchions
• Frame Style Step-Through
• Frame 6061 Aluminum Alloy with Internal Battery. One piece – Diecast aluminum front triangle
• Wheelset Tires20 x 3.0 urban tire with reflective sidewalls
• Wheels 20-inch, 12-gauge, 36-hole, double-wall aluminum, black
• Ebike System

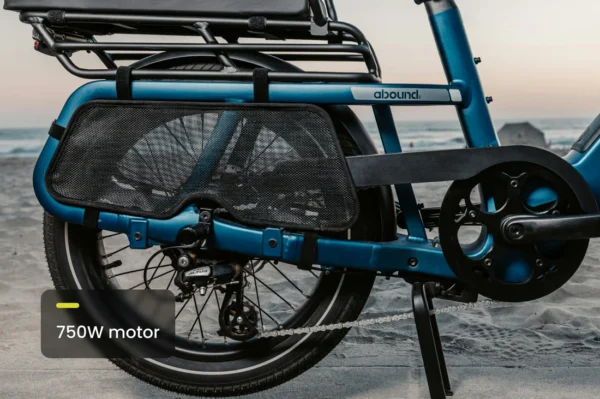

• Motor 36V 750w Hub Drive with 6 speed sensors
• Motor Torque 80Nm
• ECU Aventon ECU Module featuring wired CAN communication, GPS positioning support, wireless Bluetooth connectivity, and cellular communication capabilities
• Throttle Aventon LH Handlebar Mounted
• Sensors Double Sided
• Bottom Bracket Torque Sensor
• Charger Aventon 4A 42VDisplayAventon BC147SpeedClass 2
• Battery Aventon 36V, 20Ah, 708Wh, LG 21700 cells
• Rear Brake Rotor Tektro 203mm 6 bolt
• Front Brake Tektro HD-E3520 hydraulic disc brakes
• Rear Brake Tektro HD-E3520 hydraulic disc brakes
• Front Brake Rotor Tektro 180mm 6 bolt
• Chain 122 Link, 8 SpeedChainring52 tooth
• Crank3 piece with 165mm crank arms
• Rear Derailleur Shimano Altus RD-M310 8 Speed
• Shift Lever Shimano SL-M315-8R 8 Speed
• Cassette Shimano CS-HG200-8 8 speed Cassette, 12-32T
• Pedals 9/16″ Composite Platform
• Saddle Aventon by SelleRoyal
• Seatpost 30.9mm Suspension Seatpost with 50mm travel
• Handlebars BMX Style, 31.8mm bar clamp, 680mm width
• Stem Quill Stem with 31.8mm bar clamp diameter, 40mm length, and 140mm of vertical adjustment
• Seat Clamp 34.9mm Quick Release
• Grips Lock-on ergonomic
• Included Accessories
• Rear Rack
• Included KickstandIncluded: E-lockRear Wheel Mesh GuardsIncluded
• Rear Rack Weight Limit 143 lbs
