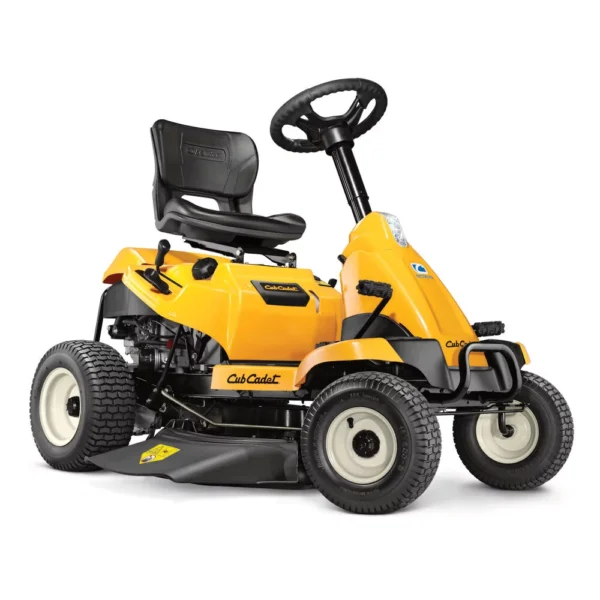

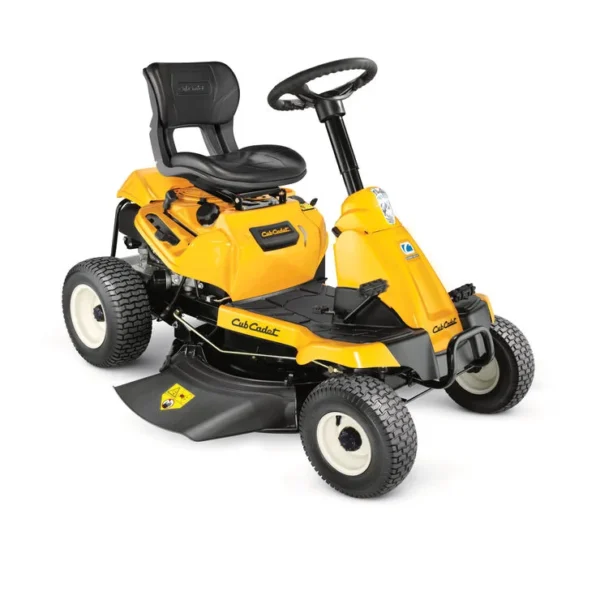

Cub Cadet Riding Lawn Mower CC30H 30-in. 10.5 HP

The Cub Cadet® CC30H 30-in. 10.5 HP* Compact Riding Lawn Mower is designed to fit through and be stored in small spaces. LED headlight designed for visibility in low light conditions. A high-back seat engineered to provide elevated back support.

• A 10.5 HP/344cc Briggs & Stratton® engine is designed to deliver reliable power to tackle your yard
• LED headlight helps provides visibility for mowing in low light conditions
• Fully pressurised with automotive-style oil pump
• Hydrostatic drive transmission
• Cub Cadet® open high-back seat designed with over sized base and elevated back support
• Small Riding Mower

Specs & Maintenance

Engine

• Engine Brand: Briggs & Stratton®
• Engine Model: Powerbuilt
• Engine Model Number: 21R707-0152
• Engine Displacement: 344cc
• Engine Output: 10.5HP
• Starter Type: Electric
• Fuel Tank Capacity: 1.3 gal. US (4.92 L )
• Cylinders: Single
• Engine Start: Ignition Key
• Engine Oil Capacity: 1.5 qt. US (1.42 L)
• Lubrication: Fully pressurised
• Charging System: 3.75 amp regulated
• Fuel Gauge: No
• Governor: Mechanical
• Choke: Choke-a-matic
• Air Filter: Single element
• Oil Filter: No
• Fuel Delivery: Carburetor

Battery

• Battery: 150 CCA
• Battery Type: AGM (Absorbent Glass Mat)
• Battery Voltage: 12V

Drive System

• Transmission: Hydro-Gear T2HP
• Forward Speed: 4 MPH / 6.4 km/h
• Reverse Speed: 2 MPH / 3.2 km/h
• Rear Axle: 3/4″
• Drive System: Hydrostatic
• Transmission Control: Foot Pedal
• Transmission Housing: Aluminium
• Rear Differential Lock: No

Cutting Deck

• Deck Cutting Width: 30 in
• Deck Wash: Yes
• Deck Material: 14-gauge steel
• Deck Engagement (PTO): Manual
• Deck Construction: Stamped
• Blade(s): One
• Deck Lift: Manual
• Cutting Height Range: 1.5″ – 4″
• Anti-Scalping: No
• Deck Positions: 5

Chassis

• Frame: Robotically welded
• Turning Radius: 18″
• Bumper: Steel tube
• Rear Tow Hitch: Yes
• Corrosion Protection: Yes
• Front Pivot Bar: 14-gauge steel

Controls

• Cruise Control: No
• Brakes: Disc

Comfort

• Seat Type: 15″ high-back
• Armrests: No
• Seat Adjustment: Knob
• Floor Mats: Integrated

Wheels

• Bearing Type: Poly Bushing
• Rear Tires: 16″x 6.5″-8″
• Front Tires: 13″x 5″-6″
• Tire Tread: Turf Saver

Specifications

• Series: CC30 Series

Additional Specifications

• Hour Meter: No
• Mulch Kit: Included
• Headlight(s): LED
• Cup Holder: Yes
• Operator Presence System: Yes
• Model Number: 13AC21JDA10

Warranty

• Residential Warranty: 3-year limited residential
• Frame Warranty: 3-year limited
• Front Axle Warranty: 3-year limited
• Deck Shell Warranty: 3-year limited
• Commercial Warranty: No
