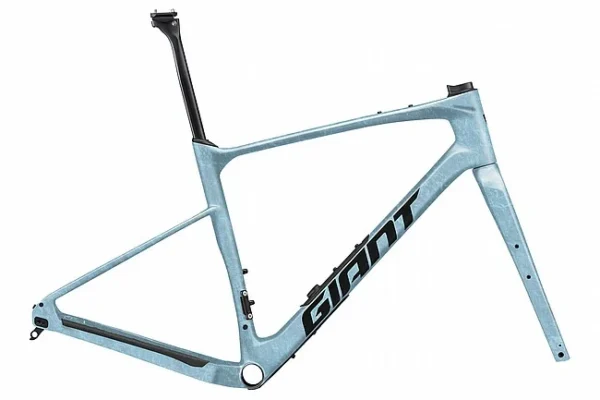

Giant 2025 Revolt Advanced Pro Frameset

Gravel Crusher

The 2025 Giant Revolt Advanced Pro frameset is built on an Advanced-grade composite frame and Advanced SL fork with new cable integration and an internal storage system to carry tools, snacks and other essentials. Designed with input from Giant’s gravel racing pros, the geometry retains its emphasis on all-rounder speed to help riders conquer all types of gravel and dirt with smooth efficiency.

A flip chip on the all-new, full composite rear dropout lets you adjust the wheelbase and tire clearance up to 53mm, and you can choose the included D-Fuse seatpost for maximum compliance or switch to a standard 30.9mm round seatpost or dropper post.

Advanced Composite Technology

Giant’s High Performance Grade raw carbon material is used to produce this custom frame material in our own composite factory with a high stiffness-to-weight ratio. The front triangle of these framesets is assembled and molded as one continuous piece in a proprietary manufacturing process called Modified Monocoque Construction.

MegaDrive, OverDrive, & PowerCore

A massive rectangular downtube and oversized toptube work in unison to provide superior front end lateral and torsional steering precision. The precisely engineered, rectangular shaped downtube yields unprecedented steering and pedaling stiffness.

OverDrive is Giant’s original oversized fork steerer tube technology. Designed to provide precise front-end steering performance, the system’s oversized headset bearings (1 1/4″ lower and 1 1/8″ upper for road, 1 1/2″ lower and 1 1/8″ upper for mountain) and tapered steerer tube work in conjunction to provide optimal steering stiffness.

A massively oversized bottom-bracket/chainstay area features a fully integrated, 86-millimeter wide bottom-bracket design (92-millimeter wide for off-road bikes). Asymmetric chainstays provide additional stiffness on the driveside and stability on the non-driveside.

Smart Integration

Internally routed cables offer clean, uncluttered cockpit aesthetics and improved aero performance. An easily accessed storage compartment inside the top tube lets you securely carry tools, snacks and other essentials. And additional integrated mounts on the top tube, fork and rear dropout make it easy to modify with additional packs or fenders. All-new, molded, chainstay and down tube protection help defend the frame against impacts and quell noise.

Features:

• Frame: Advanced-grade composite, 12x142mm thru-axle, disc, flip chip dropout, down tube storage
• Fork: Advanced SL-grade composite, full-composite OverDrive steerer, 12mm thru-axle, disc
• Seatpost: Giant D-Fuse SLR, composite, -5/+15mm offset
• In-frame storage bag
• 53mm max tire size in “long” flip chip position, 45mm max tire size in “short” flip chip position
