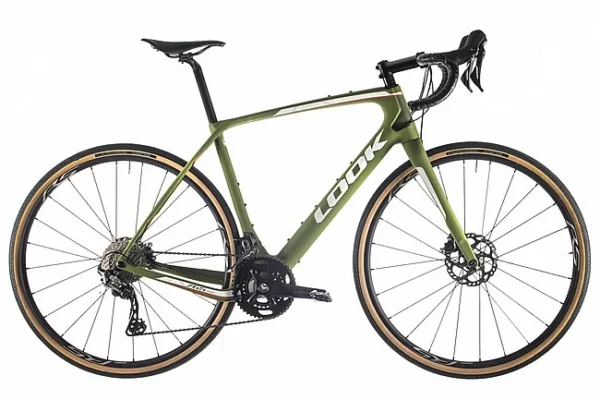

Look 2024 765 Shimano GRX 2×12 Gravel Bike

A Bike That Echoes The Call Of The Wild

Blend into the landscape with the LOOK 765 GRX 12-speed Gravel bike in Green Matte. Blast through the countryside with its carbon frame and fork with Shimano GRX groupset and RS wheels. Take hold of the Made by LOOK cockpit and let it take you from the road to the trail and back again.

Adventure Ready

The frame features mounting points for up to 4 water bottles (3 inside the main triangle and one on the bottom of the downtube) as well as a bento style box on the top tube.

3D Wave Stays

The stays are designed with 2 deflection points that enable a 15% increase in the natural compliance of the carbon. Furthermore, by flattening the tube its vertical movement can be improved while increasing its lateral rigidity. These uniquely shaped seat stays filter shock while increasing traction and control on rough terrain, without increasing the frame’s weight.

Direct Drive Concept

The integrated stem is designed to compliment the frame’s aesthetic and to be both lightweight and rigid to ensure precise bike handling. The DIRECT DRIVE concept enables the simultaneous development of all steering components (fork, headset, stem and handlebars). This ensures that there is no apparent loss of rigidity in the cockpit and provides a real sense of security and performance.

Since LOOK’s beginning in the cycling world, at a time when metal was king, their material of choice has always been carbon. For over 30 years, they have developed – within their own factories – a unique expertise and an extensive know-how in carbon fiber technologies to achieve highly-specific and performance-oriented properties.

Features:

• Carbon Frame and Fork
• Shimano GRX 2×12
• Internal Cable Routing
• Clearance for 700 x 40 or 650 x “2.1 tires
• 3 Bottle cage mounts plus top tube mount
• Weight: 9.1 kg (size M / without pedals)

Build:

Made by LOOK

• • Seatpost: LOOK LS3 Alloy 27.2×350 mm
  • Saddle: LOOK by San Marco short fit dynamic FX narrow open fit
  • Stem: LOOK LS2 (XS-S-M 90 mm / L 100 mm / XL 110 mm)
  • Handlebar: LOOK Alloy LS2 GRAVEL 12° flare (XS-S 40 cm / M-L 42 cm / XL 44 cm)

Wheels

• • Wheels: Shimano RS 370 disc cl (Tubeless ready)
  • Tires: Hutchinson Overide 70×38 mm Tanwall (Tubed)
  • Thru axles: Speed Release Ready Front: 100×12 mm / Rear: 142×12 mm

Drivetrain

• Crankset: Shimano GRX 610 46x30t (XS-S 170 mm / M-L 172,5 mm / XL 175 mm)
• Chain: Shimano HG 701
• Bottom bracket: BB 386 / Token ninjaTF 38624
• Cassette: Shimano HG 710 11×36 t
• Shifters: Shimano GRX 610
• Derailleurs: Shimano GRX 820
• Rotors: Shimano RT 70 F: 160 mm R : 140 mm
• Brakes: Shimano RX 400 disc hydraulic flat mount
