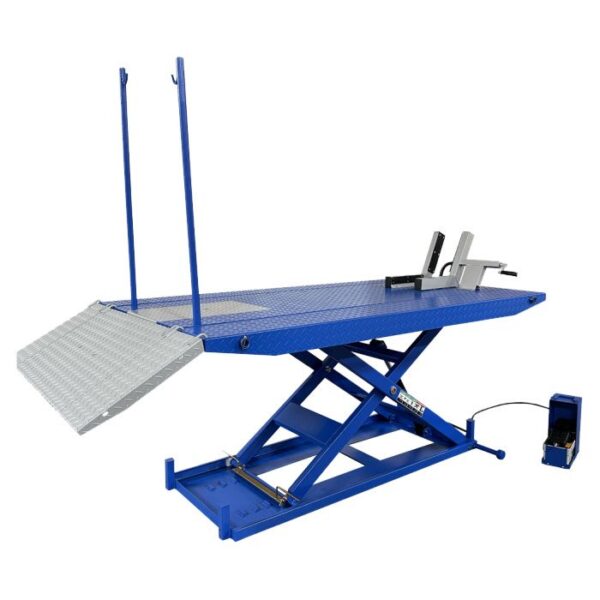

M-1500C-HR High Rise Motorcycle Lift continues to be a high-quality and versatile, high-rise scissor lift, but now with updated design improvements increasing strength and durability, along with an added portability feature!

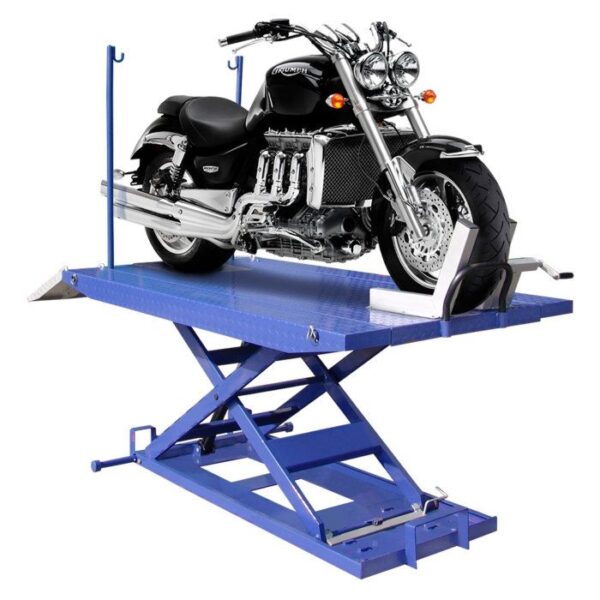

The M-1500C-HR is designed to safely lift and service most motorcycles, all-terrain, snowmobile and powersport vehicles, while powered by a high-quality air hydraulic pump requiring only compressed air to raise the lift for a max capacity of 1,500 lbs. and extended lift height of 38-1/2″. Extra platform width is provided with included side extensions, widening the platform to 50″, while matching the 88.5″ platform length.
The M-1500C-HR also features heavy duty diamond plate platform, stabilizer bar, updated dual side manual lock release, rear drop out panel, while also including a motorcycle vise and rear service support poles. Designed for multi-use applications, the M-1500C-HR can be the perfect service lift solution for power sport service and repair shops, power sport dealers and residential garages.
New Improved Design Features!
Hydraulic Cylinder Reposition to Front of Platform – Providing increased lift stability and durability
Improved Drop-Out Panel – Allows for faster and easier positioning
Improved Scissor Lift Design – Allows for increased strength and durability with added grease zerks
Updated Safety Latch Bar – Provides a mechanical ‘cam lock’ system with foot latch release on both sides of lift
New Portability Feature – Updated base allows utilizing optional Dolly and Wheel Kit for convenient lift portability

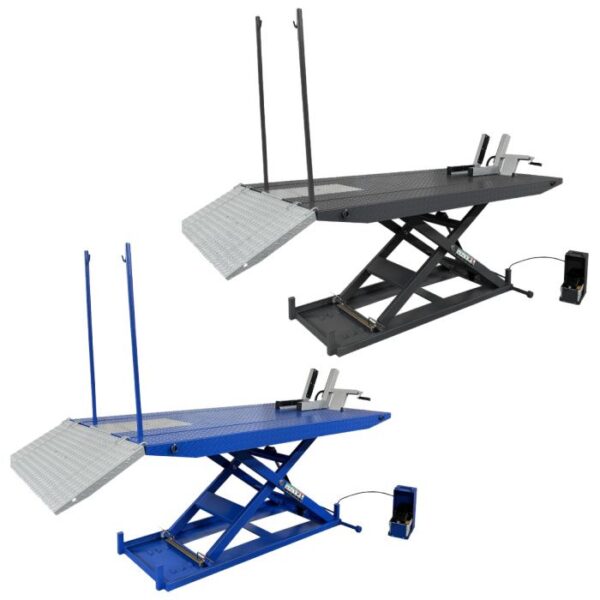

Now Available in Blue or Black
Features and Specs
Features
1,500 lbs. Lifting Capacity for Heavy-Duty Jobs
High Quality Durable Construction
Durable Powder Coat Finish
Ideal for Motorcycles, ATVs and Snowmobiles
Features Air / Hydraulic Pump for Speedy Lifting
High 38-1/2″ Lifting Height for Complete Access
Wide 50″ Platform with Side Extensions Standard
Long 88-1/2″ Platform Length
Heavy-Duty Diamond Plate Platform Surface
Protective Metal Case for Hydraulic Pump
Dual Side Manual Lock Release Operation
Built in Drop-Out Panel in the Rear of the Table for Wheel Access
Includes Rear Support Poles for Free Wheeling the Motorcycle Rear Wheel
Front Wheel Vice, Side Extensions, Support Poles and Approach Ramps Included
New Improved Features
Hydraulic Cylinder Reposition to Front of Platform
Improved Drop-Out Panel
Improved Scissor Lift Design
Updated Safety Latch Bar
New Portability Feature
Now Available in Blue or Black
Optional Accessories
1,100 lbs. Capacity Motorcycle Jack
Dolly and Wheel Kit Available in Blue or Black
Specifications
Lifting Capacity: 1,500 lbs.
Min. Height: 6-3/4″
Max. Lifting Height: 38-1/2″
Overall Width: 50″
Overall Length with Ramp: 109-1/2″
Platform Only: 88-1/2″ x 31-1/2″
Platform with Side Extensions: 88-1/2″ x 50″
Power: Air / Hydraulic
Operating Pressure: 90-125 PSI
Shipping Weight: 810 lbs.
Warranty: 5 Years Structure, 1 Year Parts, No Labor
Structural Warranty
The following parts and structural components carry a five year warranty: Columns, Top Rail, Uprights, Arms, Swivel Pins, Legs, Carriages, Tracks, Overhead Beam, Cross Rails.
Limited (1) Year Warranty
Tuxedo Distributors, LLC offers a limited one-year warranty to the original purchaser of Lifts and Wheel Service equipment in the United States and Canada. Tuxedo will replace, without charge, any part found defective in materials or workmanship under normal use, for a period of one year after purchase. The purchaser is responsible for all shipping charges. This warranty does not apply to equipment that has been improperly installed or altered or that has not been operated or maintained according to specifications.
Other Limitations
This warranty does not cover:
Parts needed for normal maintenance
Wear parts, including but not limited to cables, slider blocks, chains, rubber pads and pulleys
Replacement of lift and tire changer cylinders after the first 30 days. A seal kit and installation instructions will be sent for repairs thereafter
On-site labor
