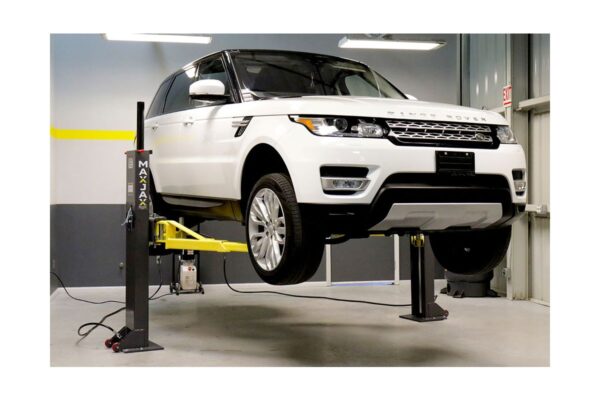

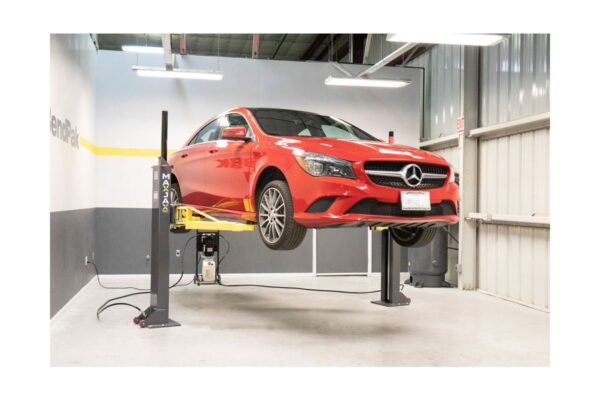

The M7K. The bigger, badder MaxJax®. Everything you loved about the M6K is back, but now with an even higher lifting capacity. Our engineers found a way to let you safely lift up to 7,000 lbs. while still retaining a minimal footprint. Thanks to its unique portable two-post design, the MaxJax offers greater versatility and serviceability when compared to traditional mid-rise or low-rise garage lifting systems.
Safety Features from the Ground Up
No one in the industry has a more sophisticated and comprehensive research and quality control program than MaxJax, and our thousands of customers worldwide prove it.
Low-pressure HVLP Direct-Drive cylinders eliminate the need for lifting chains or screw mechanisms most commonly found on other lift designs.
Rugged safety lock bars are capable of holding three-times the rated lifting capacity.
Arm restraints automatically engage each time the lift is raised.
Detailed installation, maintenance and safety instructions accompany each MaxJax car lift.
MaxJax encourages all owners to know their equipment and to follow good safety practices when using any of our products. Your MaxJax car lift equipment has been designed and built with your safety in mind, but the ultimate responsibility for safe operation is with you, the operator.
Perfect for ADAS
Newer vehicles are constantly becoming more and more advanced. They’re also becoming more complicated to service with all their new upgrades. ADAS (Advanced Driver Assistance Systems) includes handy features such as forward collision warning (FCW), lane departure warning (LDW), automatic emergency braking (AEB), and more. When performing ADAS calibration you’re telling sensors where to look, and with the complex nature of the systems, you’re going to want to make sure to have as precise readings as possible. To perform these calibrations, you’ll need plenty of space around the vehicle and you’ll need it to be perfectly level, and that’s where the MaxJax M7K comes in. Since it’s portable, you can simply position it in an optimal area to make sure you have plenty of unobstructed space. Some will perform calibrations while the vehicle remains between a two-post lift, but sometimes the posts could get in the way of the sensors. With MaxJax, you retain a larger floorspace.

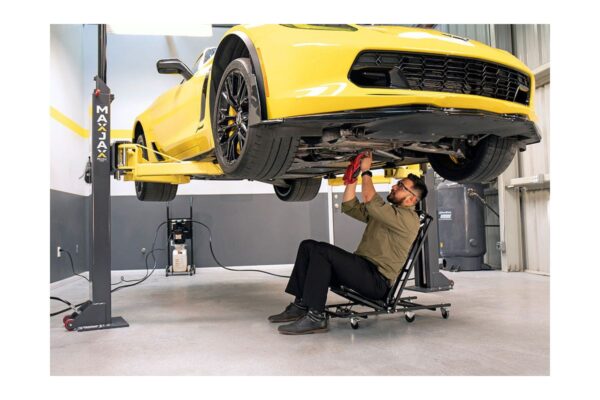

Clear undercar access
Want under-car clearance without having to rely on a permanent installation? That’s where MaxJax comes in! No other low-rise or mid-rise lift system provides more under-car clearance and unobstructed floor space than the MaxJax lifting system. Now you can easily access engine undersides as well as critical components like transmissions, drive-shafts, starters, differentials, or anything else that would require under-car access.
Portability
A two-post car lift with built-in wheels that allows you to use the lift when you need it, then conveniently store it out of the way when not in use keeping your garage and vehicle lanes clutter-free.
Stow to go in less than 15-minutes
Internally threaded recessed drop-in anchors and quick-connect/disconnect hydraulic couplers provide for fast and simple set-up. NOTICE: Before drilling into post-tension garage floors, always consult a building engineer for determining cable locations and where to avoid drilling.
Works like magic
A robust, gear-type flow divider is the heart of the MaxJax system, providing consistent, equalized lifting. The specially designed flow divider/combiner is a positive-displacement fluid control device which allows precise distribution of hydraulic power to both columns even if load balance or pressures change.
Mobile power unit cart
The great thing about our standard mobile power unit cart is that it’s small enough to be stored out of the way and it features a storage area for the hydraulic hoses. The hydraulic power unit uses a single-phase motor that requires 110-volts AC and a 23-amp breaker. The industrial grade power cord is 6-ft. long. A simple push-button switch raises the lift, and a push lever controls the lowering. Simple quick-disconnect hoses can be positioned easily for single or dual column operation.

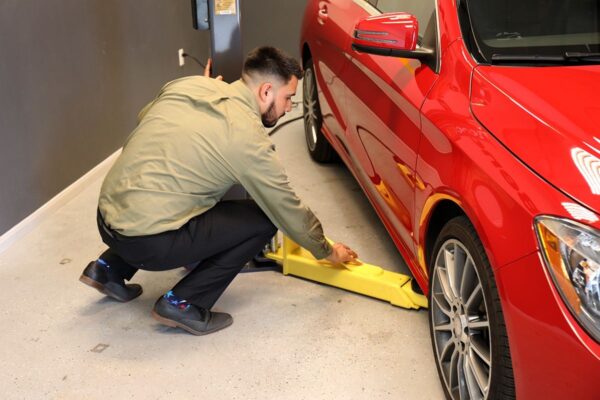

Adjustable lifting arms and stackable adapters
Increases overall arm positioning for lifting a variety of different vehicles that have Uni-body construction, OEM recommended pick-up points, or wide and/or narrow frame configurations.
Automatic arm restraints
Each arm is equipped with durable arm restraints that automatically engage each time the lift is raised. When the lift is lowered, the gear type arm restraints automatically disengage to provide easy positioning of the lift arms.
Maintenance-free slide blocks
Rather than using roller bearings that need constant lubrication and maintenance, we use futuristic full-floating UHMW ultra-high molecular weight polyethylene load bearings that never need lubrication and last virtually the life of the lift.
Single-piece columns
We purposely manufacture the columns using single-piece construction for added strength and less fatigue under heavy load conditions.
Direct-Drive technology
By utilizing two low-pressure HVLP Direct-Drive cylinders, we’ve eliminated the need for lifting chains or screw mechanisms most commonly found on other lift designs. HVLP Direct-Drive technology offers better reliability, smoother operation and less maintenance.
Industrial-grade hydraulic cylinders
Integrated into every MaxJax® hydraulic cylinder is a one-piece, pilot fitted, machined steel piston wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands that virtually eliminates any fluid bypass. The micro-smooth chrome-rod is machined from high yield, ground and polished C-1045/50 micro-alloy steel and plated to a minimum of .001″ diametrically, to ensure superior cylinder operation and life.
Two lifts in one
Our optional motorcycle adapter kit allows you to safely lift motorcycles, ATV’s or other motorized vehicles to a comfortable working height.
