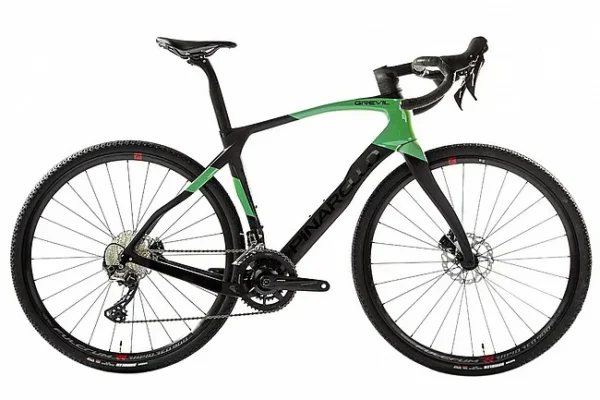

Pinarello 2023 Grevil F3 GRX Gravel Bike

Full Gas Everywhere

If you want to win a Gravel race, Pinarello Grevil F3 is the bike for you. The versatile GREVIL F is ready for anything. It can accommodate any kind of wheel or tire combination, adapting to your every need, giving you the freedom to push the limits and compete with yourself.

Even off road, aerodynamics count. Every watt saved brings you closer to victory, so the GREVIL F’s design puts a major focus on aerodynamics and rigidity. If you want to triumph on every terrain, this is the bike for you. This is the off-road DOGMA.

An Aero Gravel Bike?

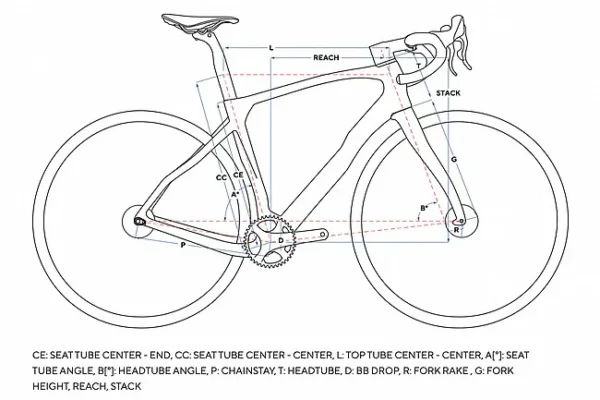

Aerodynamics always count. Gravel races often exceed 200km, with speeds reaching 70km/h, every watt saved brings you a little bit closer to victory. But also at those lengths comfort is key. Compared to a traditional road bike, the GREVIL F has shorter reach and higher stack to create an elongated position, offering better comfort and better handling. Modified fork angle and Rake ensures better handling and riding comfort. Chain stays measuring between 422-425mm provide the best compromise between responsiveness and comfort. And an increased seat tube angle allows for greater wheel clearance so it’s compatible with both 700c and 650b wheels.

Features:

• • Fork Flap: Stabilizes the flow of air on the front end and greatly improves the aerodynamic penetration coefficient.
  • Flat Back Profile: Derived from the DOGMA, this profile reduces aerodynamic drag on the tube, especially when there are bottles present.
  • TiCR: The complete integration of all cables offers aerodynamic improvement and allows for greater ease when loading bags.
  • Twin Arms: The right chain stay is rotated downwards, as is the right seat stay, to have both rear triangles symmetrical with a uniform response to pedal strokes. Different connection points for the seat stays allows the seat tube to absorb impacts coming from the rear wheel in a more uniform way.
  • Gravel Geo: Differentiated geometry and rake ensures the same trail and the same control across all frame sizes.
  • T700 Toray Carbon Fiber: Combining the perfect mix of different types of HM (high modulus) and HT (high strength) fibers to achieve the ultimate balance of rigidity and vibration absorption.
  • Shimano GRX 600 2x11spd Groupset

• Frame: TORAYCA T700 UD Carbon, 12x142mm TA
• Fork: Onda fork with forkflap, tapered head tube, 12x100mm TA
• Handlebar: MOST Jaguar GR TiCR
• Bar Tape: MOST Ultragrip Evo 3mm – Black
• Stem: MOST Tiger Alu TiCR
• Seatpost: MOST Alu Round 27.2mm
• Saddle: Most Aircross
• Shift/Brake Levers: Shimano ST-RX600 2x11s
• Front Derailleur: Shimano FD-RX810
• Rear Derailleur: Shimano RD-RX810
• Crankset: Shimano FC-RX600-11 46/30t
• Cassette: Shimano CS-HG700-11 11-34t
• Chain: Shimano CN-HG601-11
• Bottom Bracket: Shimano SM-BBR60
• Wheelset: Fulcrum Rapid Red 900
• Tires: Maxxis Rambler 700x40c
• Exact components subject to availability. Photos are indicative of FRAME ONLY
