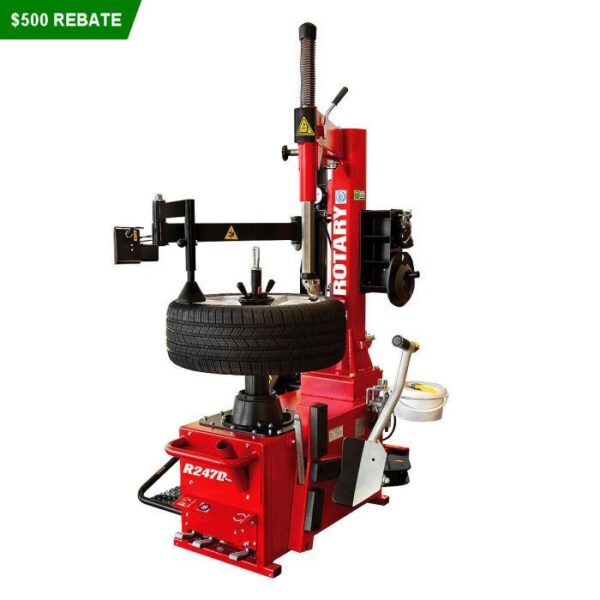

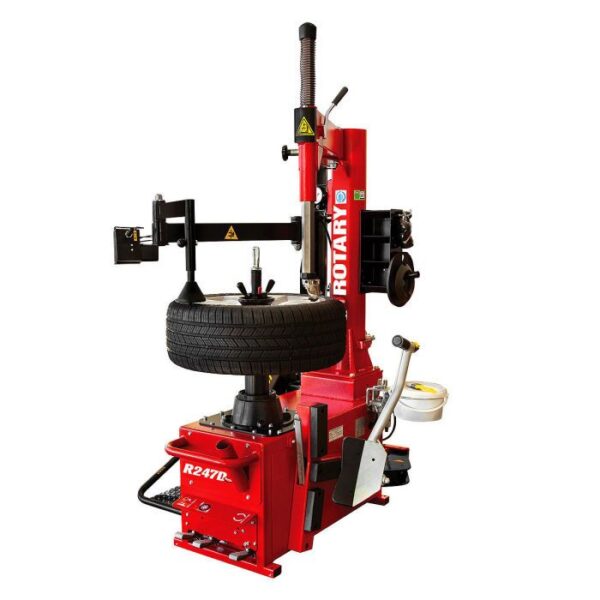

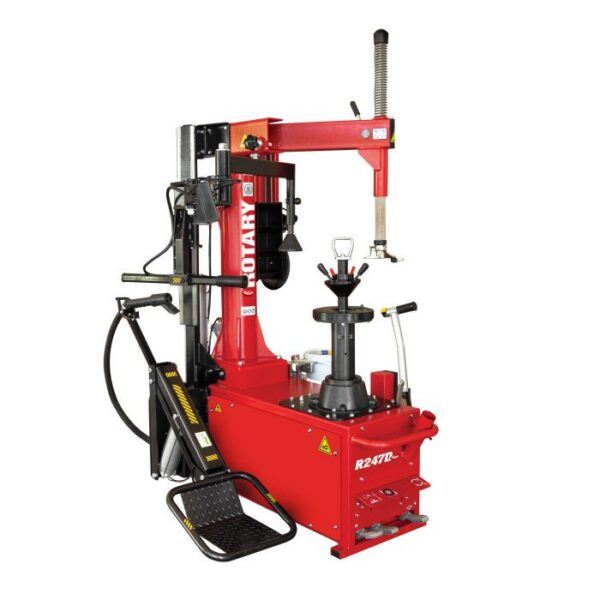

Rotary R247D.CL Center Lock Swingarm Tire Changer

• Variable Speed Control Inverter
• Center Post Locking System
• Quick Locking Wheel Centering Adapter
• Plastic & Steel Mount / Demount Heads Included
• Hand-Controlled Side Mounted Bead Breaker
• Lower Bead Lifting Roller
• Pneumatic Top Bead Pressing Tool
• Hand Controlled Side Bead Breaker
• Integrated Wheel Lift
• Storage Cabinet Standard
• 220v Drive Motor Provides Needed Torque

Standard Equipment

• Storage Cabinet Standard
• Tire Paste Lubricant and Brush
• Ships with NEMA L6-20P plug

Specifications

• Clamping Range: 10″-30″
• Maximum Wheel Width: 15″
• Maximum Wheel Diameter: 47″
• Maximum Bead Breaker Opening: 15″
• Bead Breaker Cylinder Power at 145psi: 6,745 lbs.
• Rotation Motor: 2Hp / 1,5 Kw invemotor
• Recommended Air Supply: 115-145 PSI / 8-10 bar
• Power Supply: 220v / 1Ø / 60 Hz / VARIABLE SPEED
• Machine Warranty: (3) Years Functional, (1) Year Labor

Rotary Wheel Service Warranty Statement
All Rotary Wheel Service serialized products are covered under warranty for a period of three years to the original owner. Important: The warranty period begins once the product is invoiced to an authorized Distributor/ Purchaser/ Account. This date can be adjusted by submitting to VSG Customer Service the Warranty Activation Form indicating either the installation date or proof of retail purchase date. This warranty covers any failure of the serialized product under normal use and service, caused by a defect in VSG material or factory workmanship (“Warrantable Failure”). VSG shall pay for reasonable costs of transportation and labor for replacement of warrantable parts only during the first 12 months of the warranty period.​

Accessories are warranted to the original owner for a period of one year from the retail invoice date. If a retail invoice cannot be produced, the date of the original VSG invoice shall initiate the one-year warranty period. ​

VSG warrants against defects in material and factory workmanship only. VSG does not cover wear or wear out of covered parts due to normal wear and tear.​

VSG, at its option, will repair or replace any part that is found to have failed due to a Warrantable Failure. VSG, at its discretion, may require the part returned to VSG for inspection to determine warrantability.​

This warranty does not cover normal maintenance or adjustments, including routine calibrations, remedies for routine maintenance; damage or malfunction caused by, but not limited to improper handling, installation, abuse, misuse, negligence, carelessness of operation; or force majeure events. In addition, this warranty does not cover equipment on which unauthorized repairs or alterations have been attempted and/or made to the product.​

This warranty is exclusive and all other expressed or implied warranties including merchantability or fitness for a particular purpose are hereby expressly excluded. The remedies described are exclusive and in no event shall VSG be liable for any special, consequential, or incidental damages of any kind including but not limited to damages for breach of or delay in performance of the warranty.​
